Ebike Battery

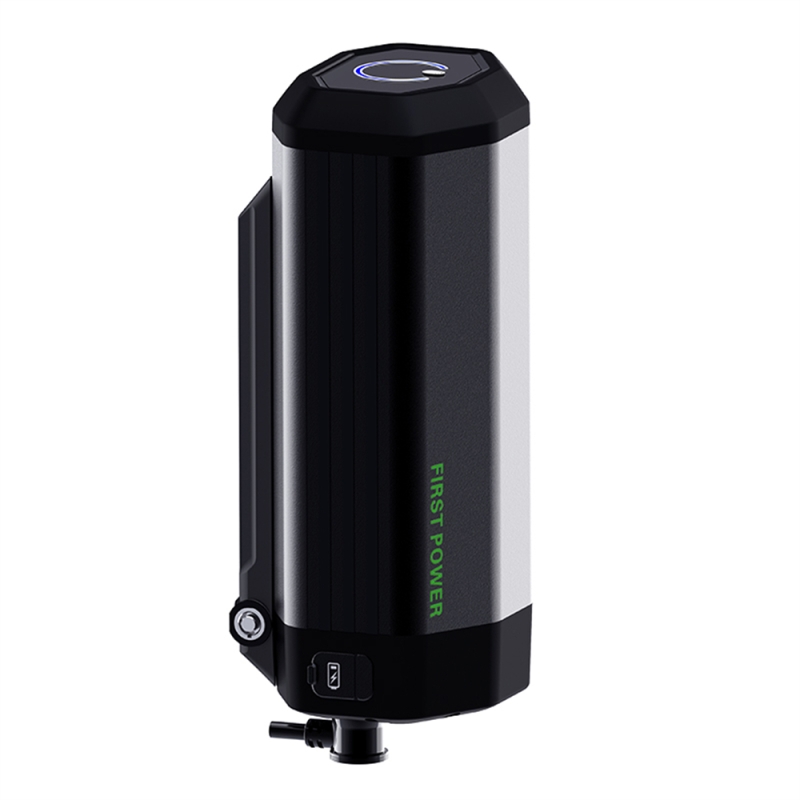

Discover the 36V 9.8Ah External Ebike Battery, EN50604 certified for safety and durability. Reliable power, long range, and easy installation for your ride.

Get a Quote

Custom Lithium Battery

Product Descripiton

NO.
序号		Item  项目Content    内容
2.1Cell Technology
电芯类型		SAM 50GB
2.2Nominal Voltage
额定电压		36V
2.3Nominal Capacity
额定容量		Nominal:9.8Ah (by standard charge and discharge)
典型值：9.8Ah（标准充电、放电）
Minimum:9.3Ah(by standard charge and discharge)
最小值：9.3Ah（标准充电、放电）
2.4Standard Charge
标准充电		Constant Current and Constant Voltage (CC/CV)
恒流恒压
Current = 1900mA                       电流=1900mA
Voltage = 42V                              电压= 42V
End Current = 190mA                   截止电流 = 190mA
2.5Max. Constant Charge Current
最大持续充电电流		4A
2.6Standard Discharge
标准放电		Constant Current (CC)
Current = 1900mA                         放电电流=1900mA
End Voltage =28V                           截止电压 =28V
Note*1：Standard discharging at 25 °C
2.7Max.Constant Discharge Current
最大持续放电电流		15A（不适用于循环）
2.8Max. Pulse Charge Current
最大瞬间放电电流		20A（3S）
2.9Cycle life  循环寿命Discharge capacity (501st cycles)  ≥70 %( Min
Capacity, Standard charge and standard discharge,
rest 30 mins after charge and rest 30 min after
discharge)
2.10Internal Impedance
内阻		≤ 200mΩ (AC 1kHz)
2.11Weight
重量		2. 10±0.3Kg
2.12Voltage of shipment
出货电压		36~38.5V
2.13Operating Temperature
工作温度		Chg：0~45℃Dsg：-20~65℃
2.14Storage Temperature
储存温度		1 month: -10 to 45℃3 month: -5 to 35℃
