3.2V105-314AH lifepo4-Lithium Battery Cells, Battery Packs & Battery Chargers Supplier

Product Descripiton

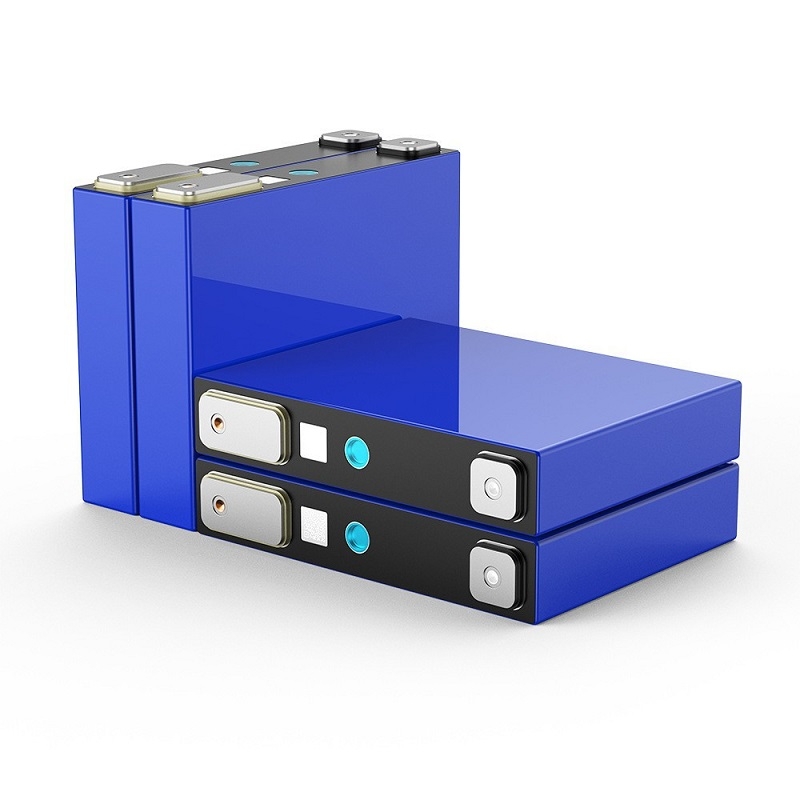

Product Name	3.2V LiFePO₄ Battery Cell
Model	FP-LFP-105~314Ah
Type	Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage	3.2 V
Capacity Range	105 Ah – 314 Ah
Energy Range	336 Wh – 1004.8 Wh
Charge Voltage	3.65 V
Discharge Cut-off Voltage	2.5 V
Standard Charge Current	0.5 C
Max Continuous Discharge Current	1 C
Cycle Life	≥ 4000 cycles (80% capacity)
Internal Resistance	≤ 0.5 mΩ
Operating Temperature	Charge: 0℃~55℃ <br> Discharge: -20℃~60℃
Storage Temperature	-10℃~35℃
Weight (Approx.)	2.0–5.6 kg (varies by model)
Shell Type	Aluminum case
Certifications	CE, UL, UN38.3, RoHS
Applications	EVs, solar energy storage, marine, UPS, and industrial power systems
