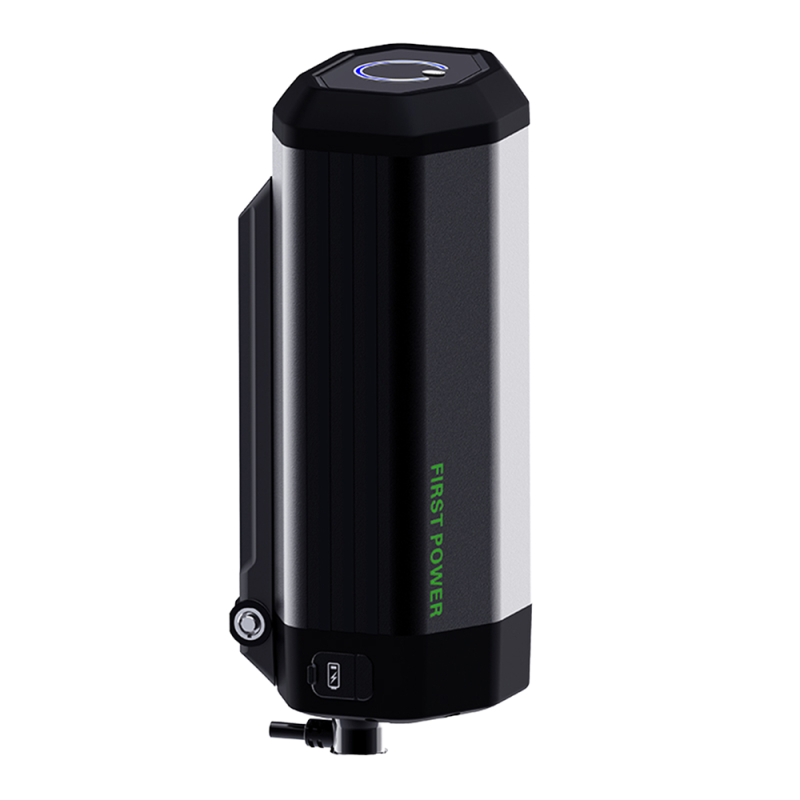

EN 50604 Certified 36V 10Ah Down Tube Battery | Safe & Reliable E-Bike Power Solution-Lithium Battery Cells, Battery Packs & Battery Chargers Supplier

Product Descripiton

NO. 序号	Item项目	Content内容
2.1	CellTechnology 电芯类型	SAM 50GB
2.2	Nominal Voltage 额定电压	36V
2.3	Nominal Capacity 额定容量	Nominal:9.8Ah(by standard charge and discharge) 典型值：9.8Ah(标准充电、放电) Minimum:9.3Ah(by standard charge and discharge) 最小值：9.3Ah(标准充电、放电)
2.4	Standard Charge 标准充电	Constant Current and Constant Voltage(CC/CV) 恒流恒压 Current=1900mA 电流=1900mA Voltage=42V 电压=42V End Current=190mA 截止电流=190mA
2.5	Max.Constant Charge Current 最大持续充电电流	4A
2.6	Standard Discharge 标准放电	Constant Current (CC) Current=1900mA 放电电流=1900mA End Voltage=28V 截止电压=28V Note*1:Standard discharging at 25°C
2.7	Max.Constant Discharge Current 最大持续放电电流	15A(不适用于循环)
2.8	Max.Pulse Charge Current 最大瞬间放电电流	20A(3S)
2.9	Cycle life循环寿命	Discharge capacity(501st cycles)≥70%(Min Capacity,Standard charge and standard discharge, rest 30 mins after charge and rest 30 min after discharge)
2.10	Internal Impedance 内阻	≤200mΩ(AC 1kHz)
2.11	Weight 重量	2.10±0.3Kg
2.12	Voltage ofshipment 出货电压	36~38.5V
2.13	Operating Temperature 工作温度	Chg:0~45℃	Dsg:-20~65℃
2.14	Storage Temperature 储存温度	1 month:-10 to 45℃	3month:-5to 35℃
