UL2271 certified
uses Grade A cells
high-performance battery

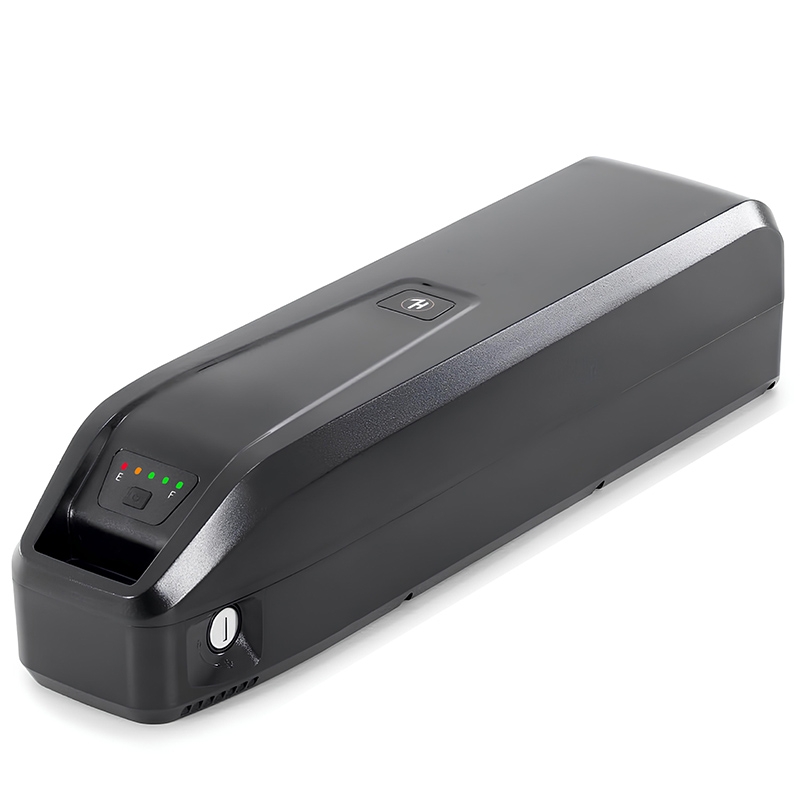

Custom Lithium Battery
| NO. 序号 | Item项目 | Content内容 | |
| 2.1 | CellTechnology 电芯类型 | 亿纬26V | |
| 2.2 | Nominal Voltage 额定电压 | 48V | |
| 2.3 | Rated Capacity 标称容量 | Nominal:12.75Ah(by standard charge and discharge) 典型值：12.75Ah(标准充电、放电) Minimum:12.11Ah(by standard charge and discharge) 最小值：12.11Ah(标准充电、放电) | |
| Typical Capacity 典型容量 | Nominal:13Ah(by standard charge and discharge) 典型值：13Ah(标准充电、放电) Minimum:12.35Ah(by standard charge and discharge) 最小值：12.35Ah(标准充电、放电) | ||
| 2.4 | Standard Charge 标准充电 | Constant Current and Constant Voltage(CC/CV) 恒流恒压 Current =2000mA 电流=2000mA Voltage=54.6V 电压=54.6V End Current =255mA 截止电流=255mA | |
| 2.5 | Max.Constant Charge Current 最大持续充电电流 | 3A(0-45℃)/2A(45-50℃) | |
| 2.6 | Spark Prevention of Charging 充电防打火 | Under specific conditions (overcurrent,short circuit, overdischarge protection,etc.),the charger that needs to detect the voltage of the charging port is not supported.The pulse charger needs to be confirmed before using,otherwise the battery protection cannot be released.特定状态时(过流、短路、过放保护等), 不支持需检测充电口电压的充电器，脉冲充电器需 确认使用，否则可能会导致电池保护不能释放。 | |
| 2.7 | Standard Discharge 标准放电 | Constant Current(CC) Current =2550mA 放电电流=2550mA End Voltage=35.1V 截止电压=35.1V Note*1:Standard discharging at 25°C | |
| 2.8 | Max.Constant Discharge Current 最大持续放电电流 | 25A(-10-35°C)/13A(35-45℃) | |
| 2.9 | Max.Pulse Charge Current 最大瞬间放电电流 | 30A(3S) | |
| 2.10 | Cycle life循环寿命 | Discharge capacity(501st cycles)≥70%(Min Capacity,Standard charge and standard discharge, rest 30 mins after charge and rest 30 min after discharge) | |
| 2.11 | Internal Impedance 内阻 | ≤200mΩ(AC 1kHz) | |
| 2.12 | Weight 重量 | 3.90±0.3Kg | |
| 2.13 | Voltage of shipment 出货电压 | 48~50V | |
| 2.14 | Operating Temperature 工作温度 | Chg:0-45℃(推荐≤3A充 电)45-50℃(推荐≤2A充电) | Dsg:-10-35℃(推 荐≤25A),35-45℃ ( 推 荐 ≤ 1 3 A 放 电 ) |
| 2.15 | Storage Temperature 储存温度 | 1 month:-20-40℃ | 3month:-20-25℃ |
