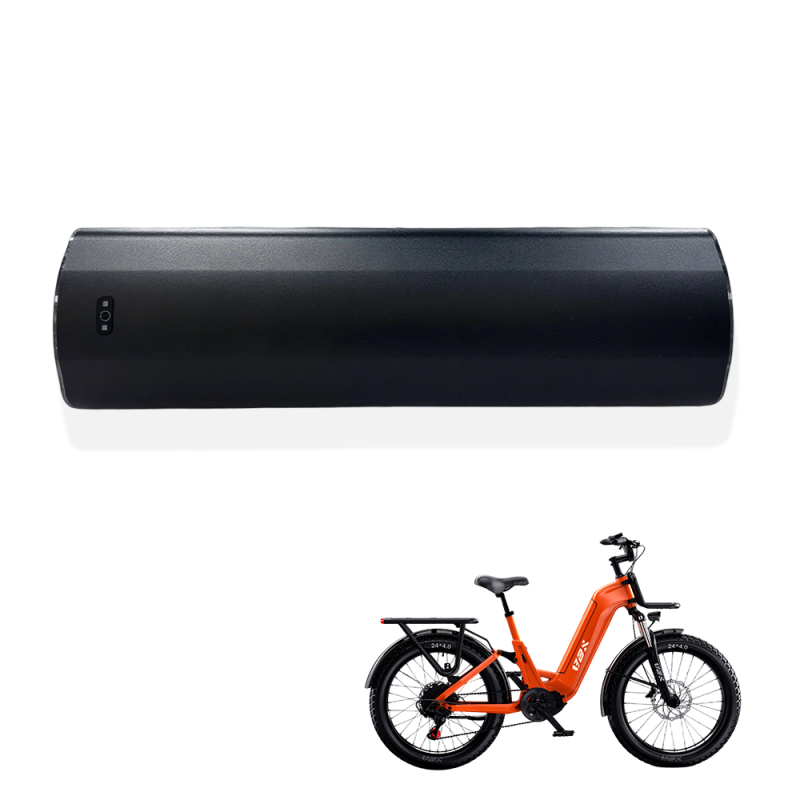

48V 20Ah Inner Tube eBike Battery | UL2271 Certified Lithium Pack-Lithium Battery Cells, Battery Packs & Battery Chargers Supplier

Product Descripiton

NO.
序号

Item 项目

Content 内容

2.1

Cell Technology
电芯类型

EVE 50E

2.2

Nominal Voltage
额定电压

48V

2.3

Nominal Capacity
额定容量

Nominal:20Ah (by standard charge and discharge)
典型值：20Ah（标准充电、放电）
Minimum:18.62Ah(by standard charge and discharge)
最小值：18.62Ah（标准充电、放电）

2.4

Standard Charge
标准充电

Constant Current and Constant Voltage (CC/CV)
恒流恒压
Current = 2000mA                       电流=2000mA
Voltage = 54.6V                           电压= 54.6V
End Current =400mA                   截止电流 =400mA

2.5

Max. Constant Charge Current
最大持续充电电流

2.6

Spark Prevention of Charging

Under specific conditions (overcurrent, short circuit,
overdischarge protection, etc.), the charger that needs
to detect the voltage of the charging port is not
supported. The pulse charger needs to be confirmed
before using, otherwise the battery protection cannot be
released.特定状态时（过流、短路、过放保护等），
不支持需检测充电口电压的充电器，脉冲充电器需
确认使用，否则可能会导致电池保护不能释放。

充电防打火

2.7

Standard Discharge
标准放电

Constant Current (CC)
Current =4000mA 放电电流=4000mA
End Voltage =35. 1V 截止电压 =35. 1V
Note*1：Standard discharging at 25 °C

2.8

Max.Constant Discharge Current
最大持续放电电流

30A

2.9

Max. Pulse Charge Current
最大瞬间放电电流

35A（3S）

2.10

Cycle life 循环寿命

Discharge capacity (501st cycles) ≥70 %( Min
Capacity, Standard charge and standard discharge,
rest 30 mins after charge and rest 30 min after
discharge)

2.11

Internal Impedance
内阻

≤ 200mΩ (AC 1kHz)

2.12

Weight
重量

4.6±0.3Kg

2.13

Voltage of shipment
出货电压

48~50V

2.14

Operating Temperature
工作温度

Chg：5~40℃

Dsg：-10~40℃

2.15

Storage Temperature
储存温度

1 month: -10 to 45℃

3 month: -5 to 35℃
